Baja Designs Rock Lights Mounted to 5th Gen Toyota 4Runner

Roof Rack Mount For Baja Designs Rock Lights

A customer came to me with a wild request: create a clean and stylish mounting solution for their Baja Rock Lights. They already had a Wescott Designs modular rack from Get Rigged Co, which was an awesome looking rack with slots for all kinds of custom accessories

I got to work by taking some initial measurement photos and figuring out the rear mounting offset and the ideal bolt diameter. Since the rack was a standard thickness, I chose to work with M5x16mm bolts. (I totally didn't use a bolt I already had a bunch of 🤫)

Thanks to Fusion 360's ability to import images as a canvas, I was able to quickly mock up an initial design.

Mox Motors Roof Rack Mount for Baja Designs Rock Light
I sent over a couple photos to the customer for approval and after getting the green light, I continued to refine the design.
Mox Motors Roof Rack Mount for Baja Designs Rock Light Side Angle in Fusion 360 with Canvas

We settled on a downward angle of about 45° for the mounts, to keep it functional and stylish at the same time I went through several iterations until I found the perfect shape for 3D printing. I started with ABS, but eventually switched to ASA for its longer life and UV protection. These mounts were going to be exposed to the sun, after all!

After getting consistent prints, I snapped a few mock-up photos to share with the customer:

Mox Motors Roof Rack Mount for Baja Designs Rock Light Mounted on 1st Gen Tacoma Generic Roof Rack
Mox Motors Roof Rack Mount for Baja Design Rock Light on 1st Gen Tacoma Generic Roof Rack Side View

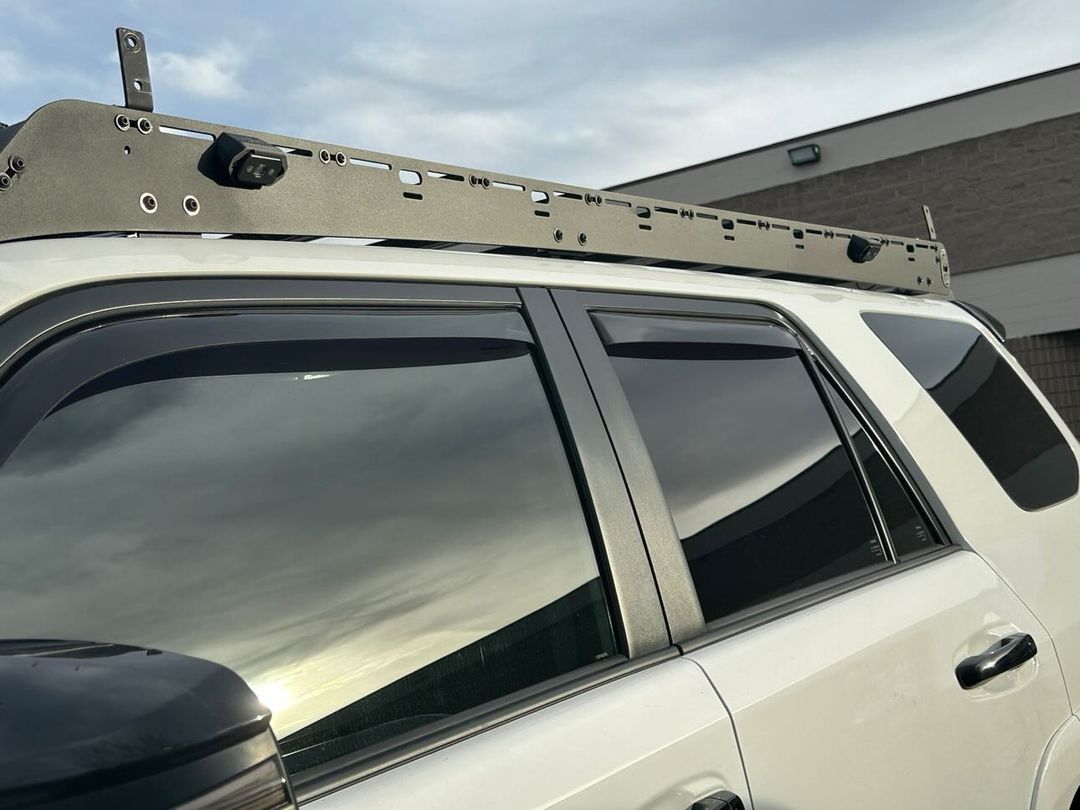

They were thrilled with the result! After a few more months of waiting for the Baja Rock Lights to come back in stock, the customer was finally able to install the kit. Check out the final result:
Mox Motors Roof Rack Mount for Baja Rock Light Wescott Designs Rack Side Side Angle Lights on at Night
I was so happy with how this project turned out that I decided to make the mounts available for printing on demand on my website. If you're interested in getting your own set of mounts for your Baja Lights, you can find them here: Mox Motors Baja Mounting Kit. And if you have any other custom design requests, reach out to us here: Contact Mox Motors
